移动式淘金车

移动式球磨离心选矿淘金车

移动式离心选矿淘金车球磨机淘金车

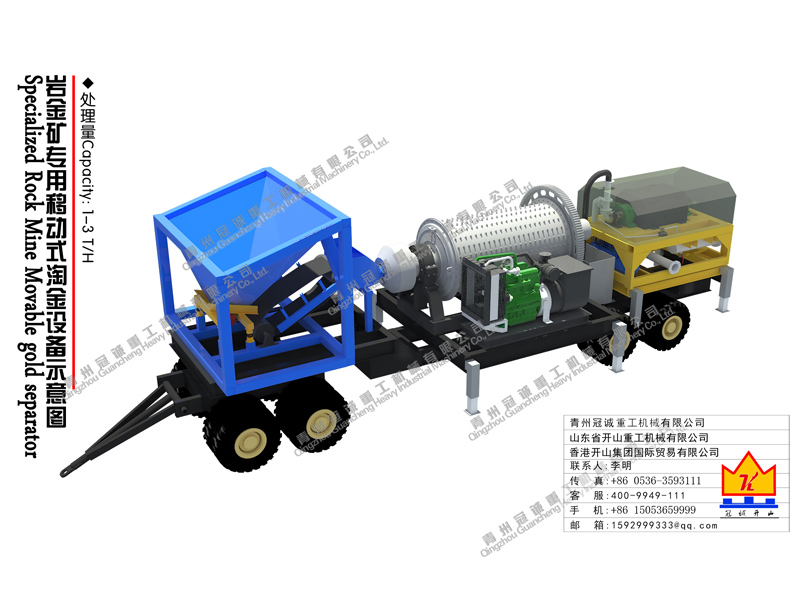

【球磨机车简介】

本套设备为移动式球磨离心选矿淘金车,适用于岩金矿选金使用,其优势如下:

1、重型汽车底盘设计,带转向系统、发电机组,可以使用牵引车辆轻松整体移动至工作场地;

2、进料斗下部安装了振动给料机,防止堵料,并且可以保障均匀供料;

3、精料收集系统采用一台卧式全自动排矿离心机,进料、排料由PLC电脑全自动控制,操作简单方便。排废料管道处增加一汞板溜槽,对废料里的金进行二次回收。(注:立式离心机因结构原因,只能在水平地面使用,无法应用于移动淘金车)

Introduction

This set of specialized rock mine movable gold separtor,it’s customized using for rock mine material,the advantage:

1.Base plate design from heavy trailer with driving bar and direction system,generator set,it can be easiler moved or transported.

2.The shaking feeder under feed hopper to prevent clogging of material

3.The concentrator sysytem we can horizontal auto discharge concentrator,separating and easy to operate and discharging auto controlled with PLC druing which 2nd time the scrap material’s recovery by amalgamating board slucie.

【流程概述】Technical process

原料通过工程车辆送入进料斗中,通过振动给料机均匀给入上料输送机中,然后送入球磨机内时行球磨,球磨后的物料排入沙箱内,通过沙泵送入离心机内进行精选,精选后的精料会自动排出,废料通过一条汞板溜槽收尾后,废料排入废料区域。

The material getting into feed hopper by excavator or other machines,the the shaking feeder can make material well distributed onto conveyor and then be transporting into ball mill,the getting into horizontal auto discharge concentrator by sand pump in sand box,then concentrate get and scrap material into amalgamating board sluice to be recovered(The horizontal type gold concentrator instead of vertical type which can be working only on ground level provide good performance as a unit of the car)

【技术参数】Detail parameter

处理量:1-3 /小时

Capacity1-3ton/hour

外型尺寸:12.7*4*3.9米(长**高)

Outlet size:12.7*4*3.9mL*W*H

底盘长度:10.5

Length of base plate10.5m

进料粒度:≤5mm

Ball mill feeding size5mm

球磨机型号:900*2600    处理量1T/h   功率:15KW

1200*2400   处理量1-3T/h  功率:30KW

Ball mill:900*2600  capacity:1T/h,power:15KW

       1200*2400 capacity:1-3T/H,power:30kw


离心机型号:60#卧式全自动排矿  功率:6.05KW

Horizontal auto discharge concentrator:60# power:6.05KW

发电机组:配备75KW发电机组1

Generator set:75kw 1set

牵引速度:建议不超过15Km/h

Driving speed:advise to be less than 15km/h


青州冠诚重工机械有限公司专业生产各种选金设备、淘金车、淘金船等,更多详细产品及性能参数请浏览网站其它产品或致电我公司,欢迎来我公司参观考察!

电话:+86 15053659999 李经理

地址:山东省青州市黄楼街道办事处西建德村
